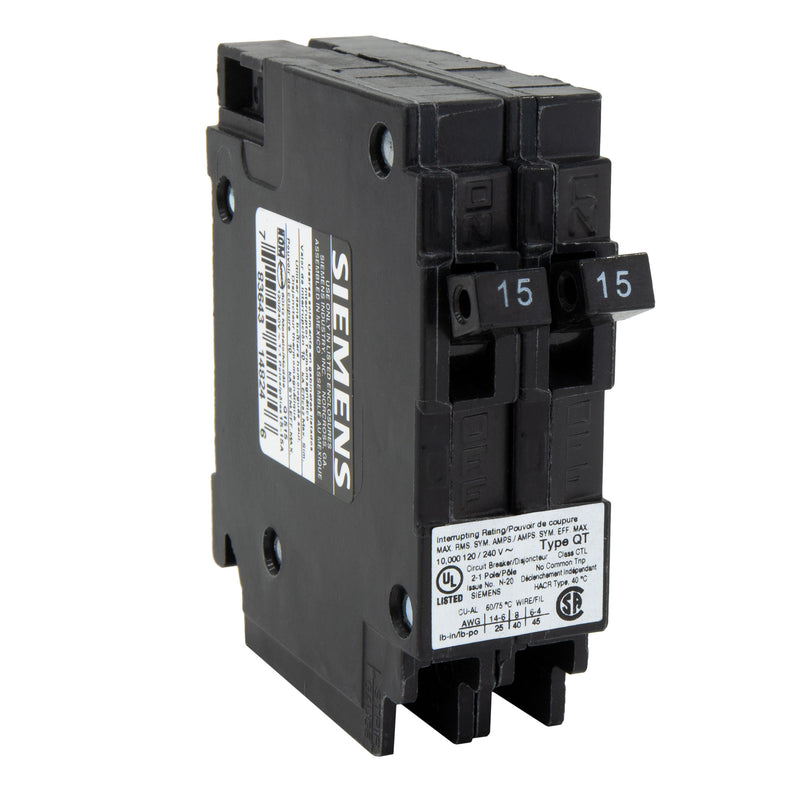

RV Circuit Breaker 15 Amp Double Breaker Siemens Q1515

In your RV's electrical system, the circuit breakers serve as the first line of defense against circuit overloads, melted wires, and even electrical fires. An electrical surge from extra appliances doesn't sound like it would be a big problem, however, this increase in electricity could heat the wires past their limit, melting the insulation and damaging the area around it. With all of the things in your RV that rely on the electrical power system, you don't want it to become damaged or impaired. To keep this from happening, the circuit breakers monitor the electrical flow and shut it off if it exceeds the limits of the circuit. While this may seem annoying at the moment, it is saving you from potentially damaging electrical faults. If your circuit breakers are old or are not working properly, it is best to replace them as soon as possible.

This RV circuit breaker is a 15 amp twin single-pole tandem type circuit breaker for 120 volts and with a 10,000 AIC interrupting rating. It is compatible with Siemens PL and ES series load centers and fits in a 1" space. It accepts #14-6 AWG Cu or #14-6 AWG Al wire. This thermal-magnetic breaker is a standard trip interrupter.
To protect you, your family, and your RV from the potential damages of an unchecked electrical system, make sure your circuit breakers are up to date and working well. Small though they may be, they have an important job to do. Have any questions? Contact us online or call our friendly Customer Care team today!

Details:

Dimensions: 3 1/8"H x 1"W x 2 1/2"D
Requires 1" space
Weight: 4 ounces
Color: black
Material: plastic
Compatible with Siemens PL and ES series load centers
Thermal-magnetic
Easy plug-in connections in Siemens load centers and meter combos
Helps protect home from damaging electrical surges, shock, and voltage spikes
Interruption type: standard trip

Technical Data:

15 Amp Twin Single-Pole type circuit breaker
120/240V type
10,000 AIC interrupting rating
Accepts #14-6 AWG Cu or #14-6 AWG AI wire
Type: QT
