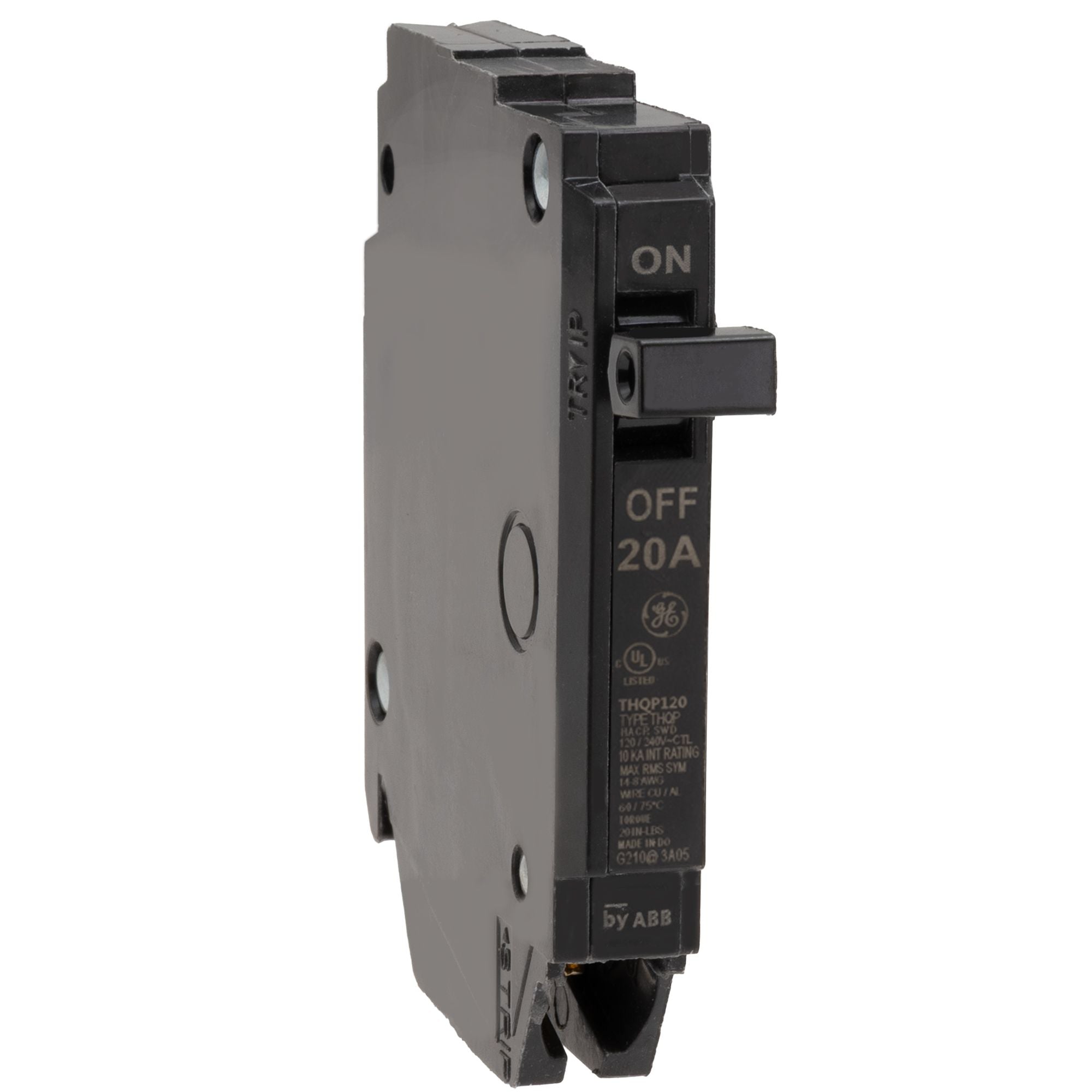

RV Circuit Breaker 20 Amp General Electric THQP120
Get Reliable Protection With An RV Circuit Breaker
There are many parts to the electrical system of your RV, but an RV circuit breaker is a vital component as well as your first line of defense against dangerous electrical issues. A reliable circuit breaker protects your RV electrical system and appliances against short circuits and power surges by limiting the amperage flowing through the system. When the amperage exceeds the amp rating of the circuit breaker it “breaks” the circuit and stops power from flowing into the rest of the electrical system.
This RV circuit breaker is a great choice for RV breaker boxes, which are typically smaller than residential breaker boxes. It is a single-pole, single-phase THQP type circuit breaker with a thin design measuring 3 ¼” H x ½” W x 2 ½” D, saving space inside the breaker box. This circuit breaker is rated for 20 amps and is suitable for HACR applications (Heating, Air Conditioning, and Refrigeration). This RV circuit breaker is compatible with copper and aluminum wires ranging from 14 AWG to 8 AWG, and can be connected via the lug screw terminal. This circuit breaker activates and deactivates via the toggle switch, and offers an AIR rating (Amperes Interrupting Rating) of 10kA at 120V or 240V AC. It can be surface mounted or mounted on a standard DIN rail.
Your RV is an investment, and it pays to keep it protected. So, use our website to order your 20A RV circuit breaker today and keep your RV protected, or chat with our Customer Care Team for further assistance.
Details:
3 ¼” H x ½” W x 2 ½” D
Brand: GE (General Electric)
Color: Black
Amps: 20A
Voltage: 120V / 240V AC
Type: THQP, Thin
Poles: 1
Phase: 1
Terminal Type: Lug
AIR Rating: 10kA @ 120V / 240V AC
Accepted Wire Types: Copper, Aluminum
Accepted Wire Sizes: 14 AWG to 8 AWG
Mounting Type: Surface/DIN Rail
Breaker Actuator: Toggle
Suitable for HACR (heating, air conditioning, and refrigeration) applications
