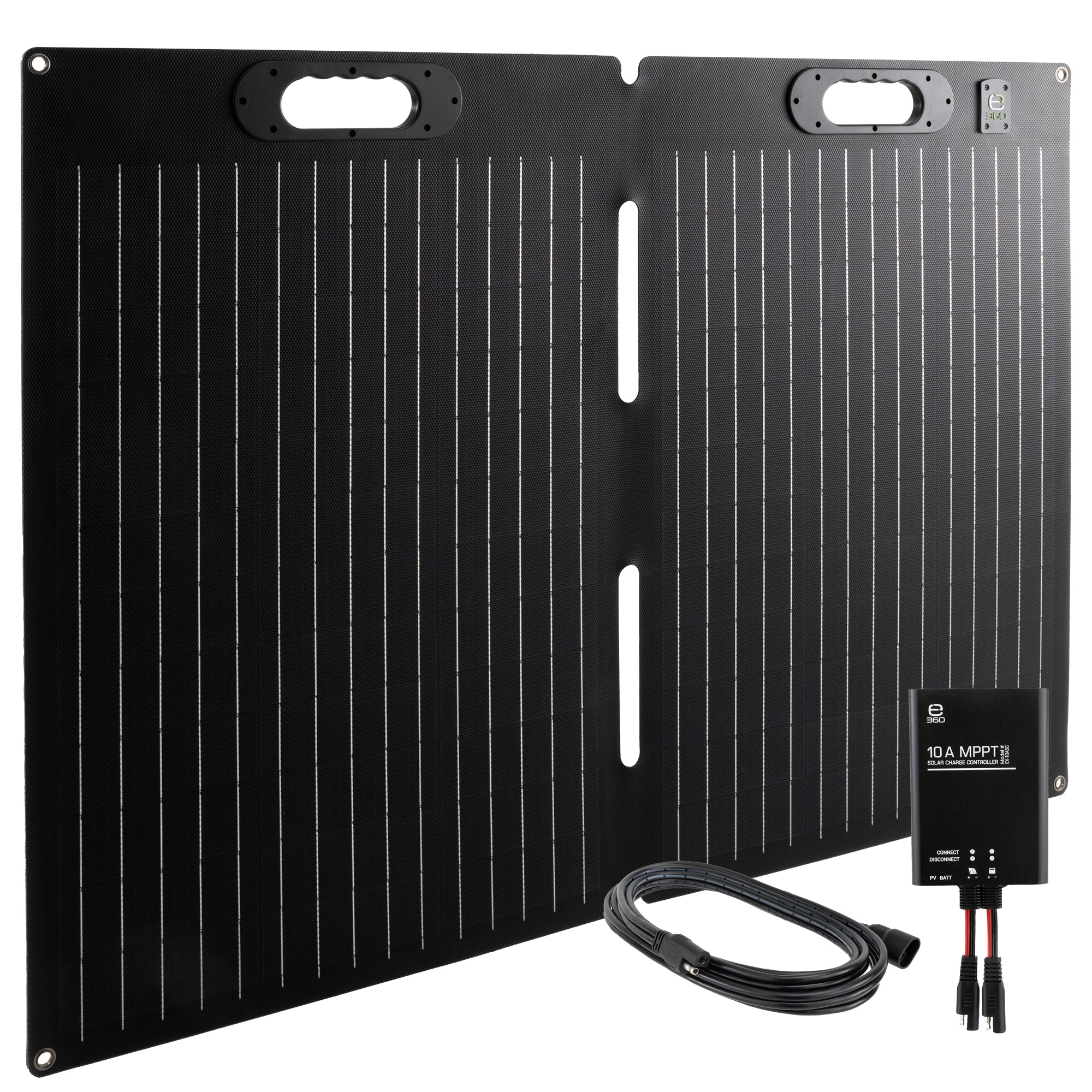

Expion360 120W Portable Solar Panel Bundle with 10A Controller
Take Power with You Anywhere with a Portable Solar Panel
Being on the road can mean being without power. But sometimes you want or need a little electricity. When you want power on the road, you want something easily portable and highly efficient. RecPro has the perfect solution with this Expion360 120W portable solar panel bundle.
This solar panel bundle is designed to fold up with an easy to use handle for portability. So you can get efficient solar power anywhere you are without the need for expensive generators or setups. The solar panel is 120W and the solar controller is 10A. It also comes with an 8 foot SAE extension cable. This kit is compatible with any lithium batteries, making it a versatile addition to any setup. Note that it is NOT compatible with lead-acid batteries. In addition to being able to be used to charge lithium batteries, it is also compatible with Expion360’s portable power station, EX-AURA001. The folded dimensions are 21.25” x 30.5” x 2” and deployed dimensions are 42.25” X 30.5” x 1”. This bundle also comes with a 10 year manufacturer warranty.
Don’t let a lack of power keep you from enjoying your adventure to the fullest. With a portable solar kit, you can keep your batteries charged no matter where you are with ease. Shop online at RecPro or call our friendly Customer Care Team for more information.
Solar Charge Controller Specs:
Battery type: LiFePO₄
Max. PV input current: 10A
Rated charging current: 10A
Max. PV input power (12V): 130W
Full charge voltage: 14.4Vdc
Float charge voltage: 13.8Vdc
Connection type: SAE
PV reverse polarity protection
Battery reverse polarity protection (if PV is disconnected)
Battery over charge protection
PV over voltage protection
PV overcurrent protection (max. 15A)
Ingress protection: IP67
Dimensions: 4.9” x 3.5” x 1.2”
Details:
Portable solar panel bundle
Compatible with any lithium battery
Not compatible with lead-acid batteries
120 watt solar panel
10 amp solar controller
8 foot SAE extension cable
10 year manufacturer warranty
Compatible with EX-AURA001
**Please be mindful when connecting SAE wires and pay close attention to their polarity. Improper polarity can lead to potential damage or hazards. Follow instructions carefully to ensure you are wiring correctly.**
Solar Panel Specs:
Peak power (Pmax): 120W
Voltage at Pmax (Vmp): 19.8Vdc
Current at Pmax (Imp): 5.75A
Open circuit voltage (Voc): 23 Vdc
Short circuit current (Isc): 6.03A
Power tolerance: ±5%
Cell type: Monocrystalline
Folded dimensions: 21.25” x 30.5” x 2”
Deployed dimensions: 42.25” X 30.5” x 1”
Weight: about 12 pounds
Wiring size: 16 AWG
Connector: SAE
No fuse protection
Frame material: ETFE
Ingress protection: IP65
Temperature range: 14°F to 122°F (-10°C to 50°C)
