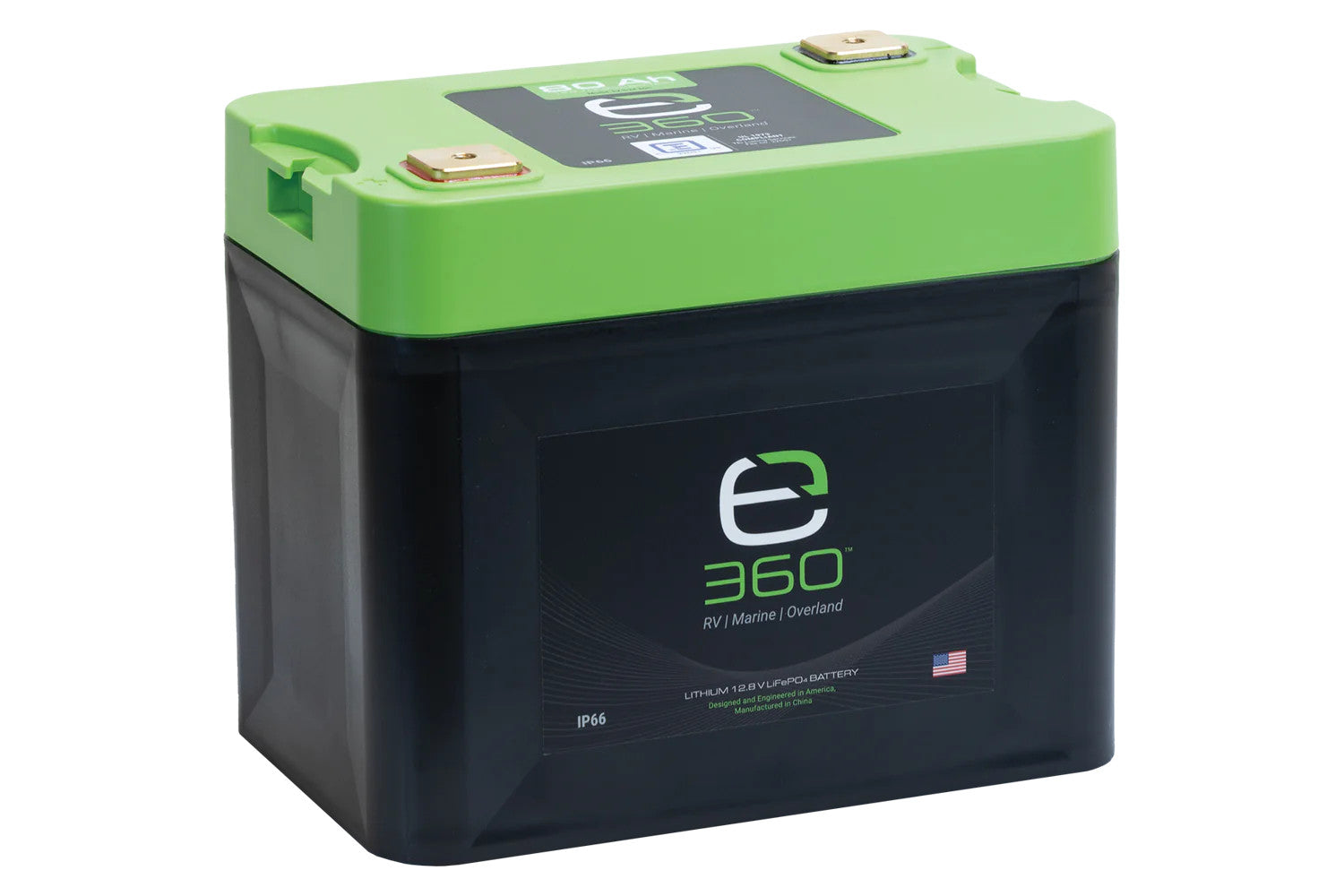

Expion360 12V Lithium Battery 80 Amp Hours
Compact 12V Battery Perfect for RVs, Marine, Off-Grid and More
A battery bank can keep you powered for hours. But if your batteries are old or just not holding a charge anymore, then they may be letting you down. When it comes time to upgrade, you want to find the best. RecPro has Expion360’s batteries, they’re high density and LiFePO₄ for long-lasting and high performance.
This compact battery is a 12V battery with 80 amp hours. It’s great for many setups, including RVs, trailers, off-grid applications, and more. It has an easy to read status light so you can quickly and easily diagnose your battery, should failure occur. It has a long life cycle, with more than 4000 cycles at 1C. This battery is packed with safety features. The battery management system (BMS) provides short circuit protection, overcurrent protection, overvoltage protection, undervoltage protection, thermal protection, and cell balancing.
The battery cells are protected by a durable ABS plastic housing. The housing is IP66 water resistant. The dimensions of the housing are 10.2” x 6.8” x 8.6” and it weighs about 24 pounds. This battery has compatibility with EX-G24-TDS, EX-G24-TDS2, EX-G24-TDS3, EX-BM350-KT, EX-AURA001, and EX-G24_27-BUS02-Set. You can wire this battery in series or parallel up to four batteries. Please follow the manual’s wiring instructions closely for the safety of you and your battery. This battery also comes with a 12 year manufacturer warranty that is detailed in the manual.
If your battery bank just isn’t what it used to be, then upgrade with RecPro. We offer a variety of Expion360 batteries to get your setup powered just right for you. Shop on our website today, or reach out to our Customer Service Team with any questions.
Electrical Parameters:
Nominal voltage: 12.8 Vdc
Rated capacity: 81 Ah
Energy: 1036 Wh
Resistance: <5 mΩ
Efficiency: >99%
Cycle life: >4000 cycles at 1C, 100% DoD
Cell self-discharge: <2% per month
Cells in Series/Parallel: 4S/24P
Discharge Parameters:
Continuous discharge current: 60A
Max, discharge current: 80A
Pulse discharge current: 100A (1s)
Recommended Volt. disconnect: 10.5 Vdc
BMS discharge cut-off voltage: 9.2 Vdc
Short circuit protection: 200μs to 600μ
Charge parameters:
Charge method: CC-CV
Recommended charge voltage: 14.6 Vdc
Recommended float voltage: 13.6 Vdc
Recommended Charge Current: 20A
Max. Charge current: 40A
BMS charge cut-off voltage: 14.6 Vdc
Temperature Parameters:
Discharge temperature: -4°F to 140°F (-20°C to 60°C)
Charge Temperature: 32°F to 140°F (0°C to 60°C)
Storage temperature: 32°F to 95°F (0°C to 35°C)
Details:
Expion360 lithium iron phosphate battery
Long life cycle
High energy density
High discharge current
Fast charging
Maintenance free
Compatible with EX-G24-TDS, EX-G24-TDS2, EX-G24-TDS3, EX-BM350-KT, EX-AURA001, and EX-G24_27-BUS02-Set
12 year manufacturer warranty
Dimensions: 10.2” x 6.8” x 8.6”
Weight: 24 pounds
Terminal thread: M8 x 1.25
ABS plastic housing
Housing protection: IP66
Cell type(chemistry): Cylindrical (LiFePO₄)
Short circuit protection, Overvoltage protection, Undervoltage protection, Overcurrent protection, Thermal protection, and Cell balancing
Disclaimer:
Do not mix batteries of different ages and sizes in one battery bank.
Do not put more than four batteries in parallel or series.
Do not mix with lead-acid batteries when recycling.
Do not use as a starter…
