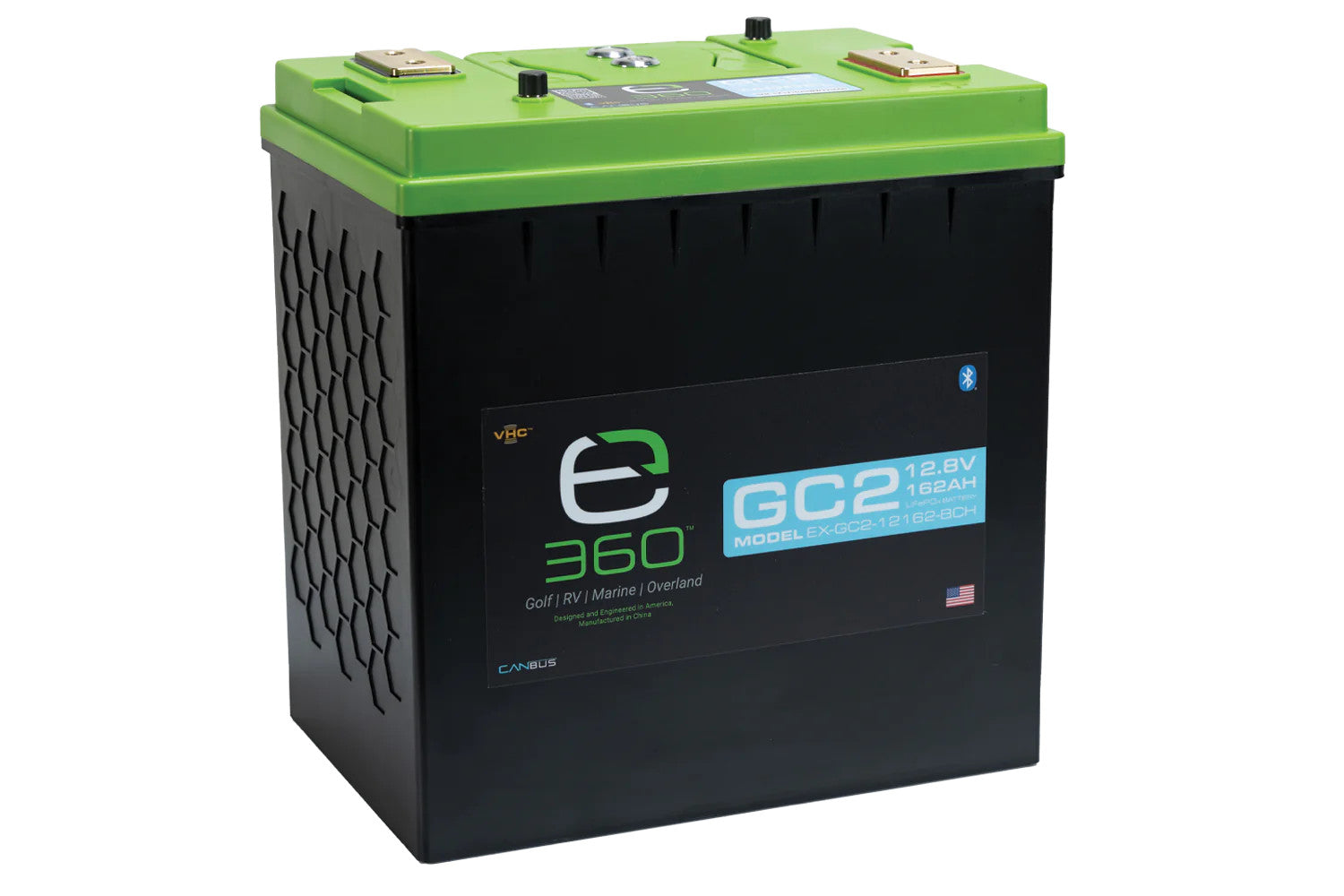

Expion360 Smart 12V Lithium Battery 162 Amp Hours with Bluetooth and Internal Heating
Long Lasting Batteries for Your Off-Grid or RV Setup
Running a battery setup is great, if your batteries are in good condition. But if your setup is older or you don’t have one, then finding the right battery can feel overwhelming. RecPro is here to make your battery shopping easier. We offer batteries that are perfect for RVs, trailers, off-grid, and more.
This Expion360 battery is a 12V battery with 162 amp hours in it. It can easily be wired in parallel to add more amp hours to your setup. This battery cannot be wired in series, it is only meant for parallel wiring. It has a vertical heat conduction (VHC) system that helps to keep the battery warm and functioning in colder climates. It also features two different communication methods. It can be CAN bus wired to a monitoring system for a physical connection. For those that like things a little more modern, it also has Bluetooth capabilities that allow you to check the status of your batteries from your phone through the Expion360 app. In addition to a heat system and two comm systems, this battery comes with a battery management system (BMS) that provides several protections to your battery, including voltage protections and short circuits, as well as cell balancing.
This has a long battery life of more than 4000 cycles at 1C. The housing is a sturdy ABS plastic that will keep your battery cells protected. The housing measures 10.2” x 7.1” x 10.9” and weighs roughly 39 pounds. It is compatible with Expion360 parts EX-TDS001, EX-CA201, and EX-CA202. Because Expion360 believes in their batteries, they’ve included a 12 year manufacturer warranty that you can read more about in the manual.
LRecPro can get you setup with the perfect battery from Expion360. We’ll have you charged and ready to power anything. Browse our selection online or contact our Customer Service Team with questions.
Electrical Parameters:
Nominal voltage: 12.8 Vdc
Rated capacity: 162 Ah
Energy: 2073 Wh
Resistance: <5 mΩ
Cycle life: >4000 cycles at 1C, 100% DoD
Cell self-discharge: <5% per month
Discharge Parameters:
Continuous discharge current: 80A
Max, discharge current: 150A
Pulse discharge current: 180A (3s), 225A (1s)
Recommended Volt. disconnect: 12 Vdc
BMS discharge cut-off voltage: 10 Vdc
Charge parameters:
Charge method: CC-CV
Recommended charge voltage: 14.6 Vdc
Recommended float voltage: 13.8 Vdc
Recommended Charge Current: 36A
Max. Charge current: 72A
BMS charge cut-off voltage: 14.6 Vdc
Temperature Parameters:
Discharge temperature: -4°F to 150°F (-20°C to 65°C)
Charge Temperature: 32°F to 140°F (0°C to 60°C)
Storage temperature: -4°F to 113°F (-20°C to 45°C)
Details:
Expion360 lithium iron phosphate battery
Long life cycle
High energy density
High discharge current
Fast charging
Maintenance free
Compatible with EX-TDS001, EX-CA201, and EX-CA202
12 year manufacturer warranty
Vertical Heat Conduction (VHC) technology
Bluetooth
CAN Bus communication
Dimensions: 10.2” x 7.1” x 10.9”
Weight: 39 pounds
Terminal thread: M8 x 1.25
ABS plastic housing
Housing protection: IP65
Cell type(chemistry): Cylindrical (LiFePO₄)
Short circuit protection, Overvoltage protection, Undervoltage protection, Overcurrent pro…
