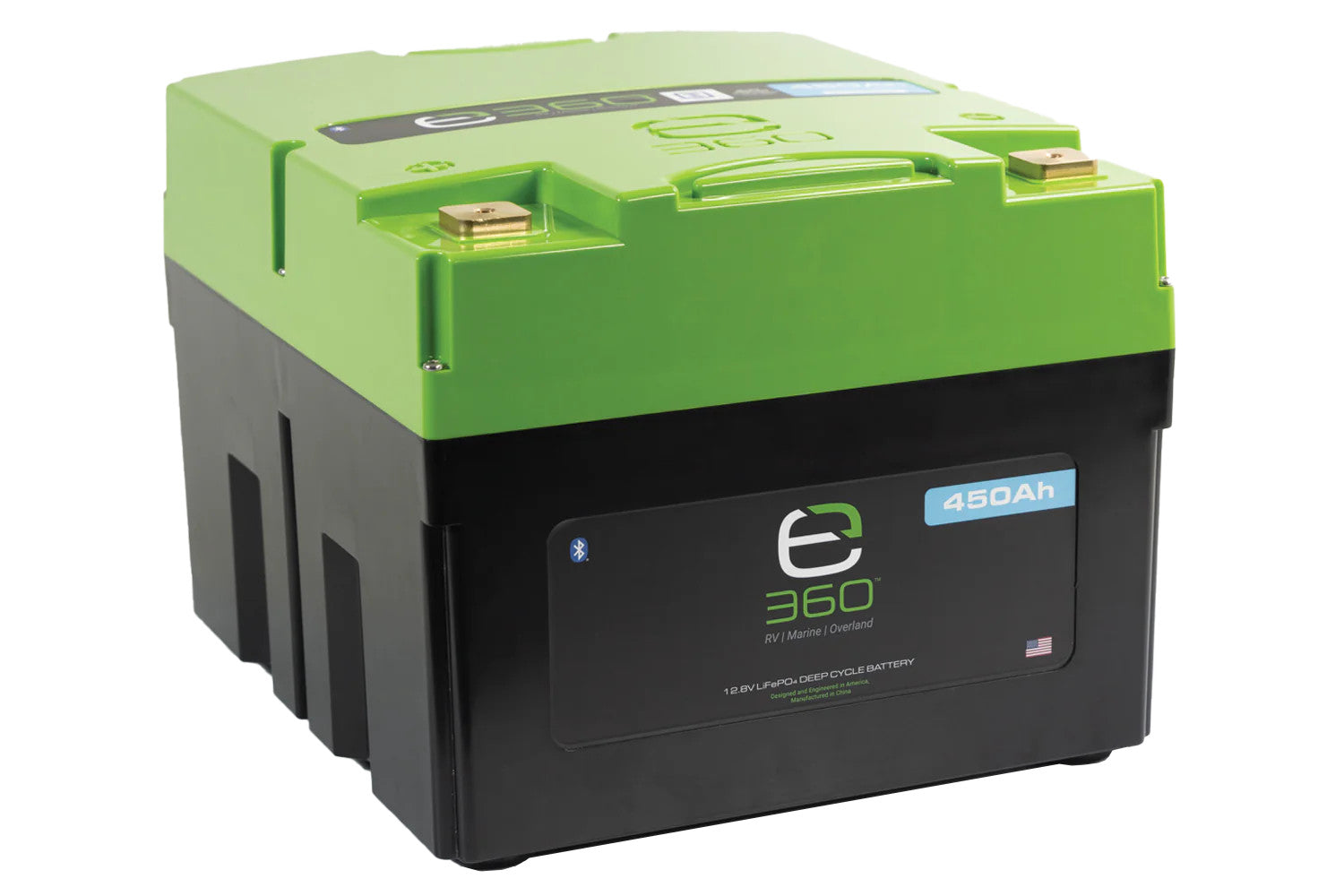

Expion360 Smart 12V Lithium Battery 450 Amp Hours with Bluetooth
Upgrade to a Lithium Battery for All Your Off Grid and RV Needs
Having reliable power while traveling is always nice. But sometimes you’re staying in places that don’t have shore power. When you need power while off grid, look no further than a reliable battery setup. RecPro offers Expion360’s extreme density line batteries that make for powerful battery banks on any setup.
This Expion360 battery is a lithium iron phosphate battery. It is a 12V battery with 450 Amp hours. It has Bluetooth integration so you can easily check the status of your battery from the SmartTalk app. It features a long life cycle (>4000 cycles at .5C) so it will keep you powered for years. Included is a battery management system (BMS) that adds even more safety and protection to your battery. It provides short circuit protection, overvoltage protection, undervoltage protection, overcurrent protection, thermal protection, and cell balancing.
The battery housing is made of durable ABS plastic for a secure place for your battery cells. The housing is rated IP55. The overall dimensions are 14.8” x 13” x 10.4” and weighs about 110 pounds. It is compatible with EX-360-TDS and EX-BM350-KT. This battery can be wired in series or parallel, up to four batteries. Be sure to follow the manual closely when wiring for proper safety of you and your battery. The manual also has the information on the 12 year manufacturer warranty covered.
When your power setup is lacking, shop RecPro for your upgrade. We’ll get you equipped with the best out there. Shop our website now or contact our Customer Care Team with any questions.
Electrical Parameters:
Nominal voltage: 12.8 Vdc
Rated capacity: 450 Ah
Energy: 5760 Wh
Resistance: ≤3 mΩ
Efficiency: >99%
Cycle life: >4000 cycles at .5C, 100% DoD
Cell self-discharge: <2% per month
Cells in Series/Parallel: 4S/92P
Communication: Bluetooth
Discharge Parameters:
Continuous discharge current: 180A
Max, discharge current: 250A
Pulse discharge current: 375A (1s)
Recommended Volt. disconnect: 12 Vdc
BMS discharge cut-off voltage: 10 Vdc
Short circuit protection: 200μs to 600μ
Charge parameters:
Charge method: CC-CV
Recommended charge voltage: 14.6 Vdc
Recommended float voltage: 13.6 Vdc
Recommended Charge Current: 72A
Max. Charge current: 180A
BMS charge cut-off voltage: 14.6 Vdc
Temperature Parameters:
Discharge temperature: -4°F to 150°F (-20°C to 65°C)
Charge Temperature: 32°F to 140°F (0°C to 60°C)
Storage temperature: 32°F to 95°F (0°C to 35°C)
Details:
Expion360 lithium iron phosphate battery
Long life cycle
High energy density
High discharge current
Fast charging
Maintenance free
Bluetooth
Compatible with EX-360-TDS & EX-BM350-KT
12 year manufacturer warranty
Dimensions: 14.8” x 13” x 10.4”
Weight: 110 pounds
Terminal thread: M8 x 1.25
ABS plastic housing
Housing protection: IP55
Cell type(chemistry): Cylindrical (LiFePO₄)
Short circuit protection, Overvoltage protection, Undervoltage protection, Overcurrent protection, Thermal protection, and Cell balancing
Disclaimer:
Do not mix batteries of different ages and sizes in one battery bank.
Do not put more than four batteries in parallel or series.
Do not mix with lead-acid batteries when recycling.
Do not use as a starter battery
