Having an off-grid system can help give you peace of mind and a lot more independence during your RV adventures. Do you want to step into the world of off-grid living but are unsure where to start? Look no further than this 100 Watt Solar Kit!

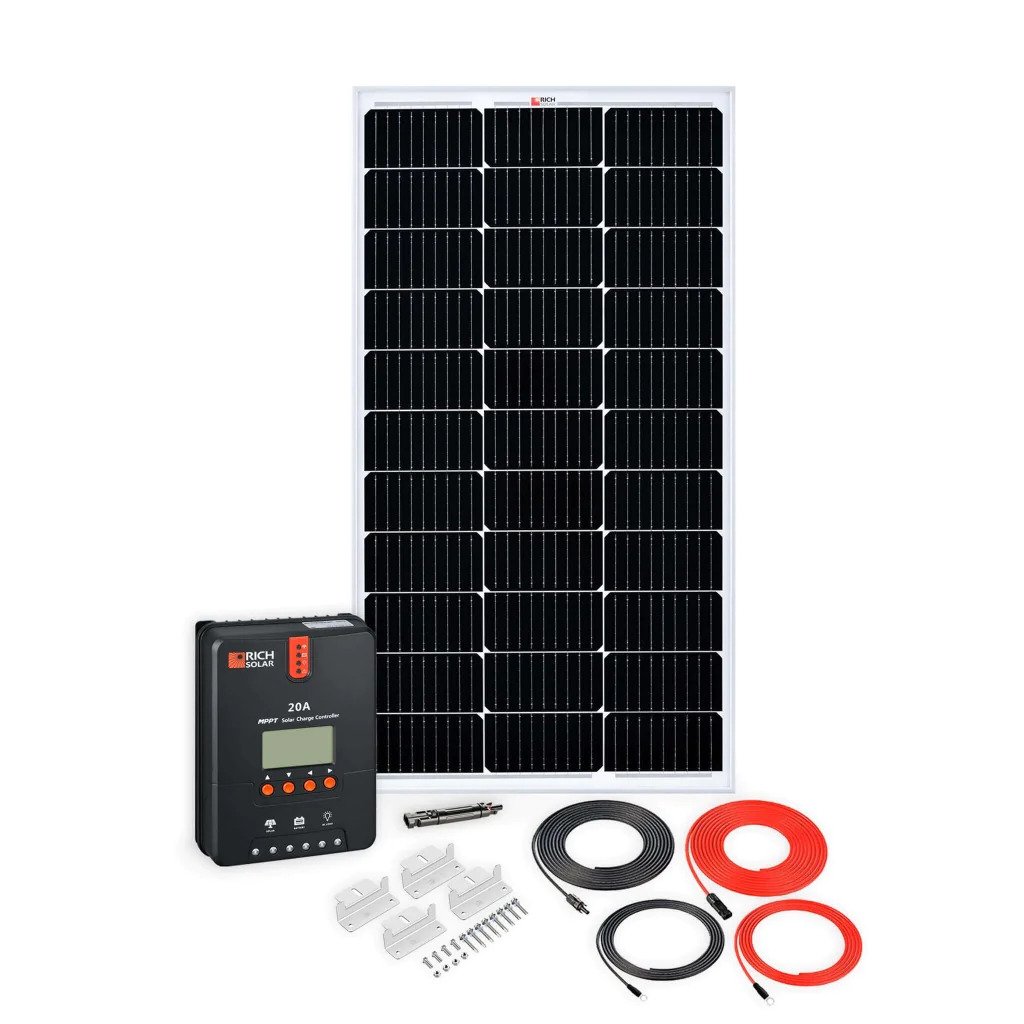

What's IncludedWhat do you get out of this fantastic off-grid solar kit? This handy kit features two main components: a 100-watt 12v solar panel and a 20A MPPT charge controller. Along with these two main components, this kit also includes cables for connecting your battery, controller, and panel, as well as mounting brackets and a 10a in-line fuse holder with a fuse.
The Solar PanelDespite its smaller size, this 100-watt 12v solar panel has a lot to enjoy. This solar panel is equipped with a total of 33 high-grade monocrystalline solar cells that provide excellent power output. The solar cells are covered by strong tempered glass, which is then given an anti-reflective coating to help maximize light absorption by the solar cells. All of that is held together by the solar panels' lightweight anodized aluminum frame. Thanks to its plug-and-play junction box, the solar panel is easy to install, so you can get this panel set up in no time.
The Charger ControllerThe charge controller prevents your batteries from overcharging by regulating the current and voltage flowing in from the solar panel. This 20A charge controller features MPPT technology (Maximum Power Point Tracking), allowing the solar panel to operate at its optimum voltage and current for maximum power output. The charge controller provides you with real-time updates on your volts, amps, and amp hours on an easy-to-read LCD screen so you can check your power with a quick glance. This charge controller can handle up to 300w while charging a 12v battery (battery not included with this kit).
Installation HardwareThis kit provides you with all you need to install it on your rig, minus any screws, tools, or adhesives. The kit provides you with two 20-foot 10-gauge solar cables (red and black) as well as two ten-foot 10-gauge battery cables (red and black). In this kit, you also receive a pre-assembled wiring harness for easy wiring - no crimping tools needed! The included set of mounting Z brackets makes it easy to mount your new hardware, and the 10A in-line fuse holder and fuse provide further protection to your system.
Off-Grid Made EasyIf you are looking to get into off-grid living, or you simply want to add a useful and affordable upgrade to your RV, camper, or trailer, then this 100-watt solar kit is the perfect way to go. Take advantage of all it offers you by using our website or calling our Customer Care Team to order yours today!
Details:
100 Watt 12v Solar Panel
33 high-grade monocrystalline solar cells for optimal output
Anti-reflective coated tempered glass maximizes light absorption
Lightweight anodized aluminum frame
Plug-and-play junction box
0~+5W positive power tolerance
19.8% max efficiency
9 busbars
20A MPPT charge controller
Check your power with a quick look
Real-time updates of volts, amps, and amp hours
Protects your system from overcharging
Can handle up to 300W while charging a 12v battery (not included)
Easy To Read LCD screen
Pre-assembled wiring harness makes installation easy
No crimping tools needed
Perfect entry point for off-grid adventuring
25-year output warranty
Includes:
One 100 Watt 12V Monocrystalline Solar Panel
One 20A MPPT Solar Charge Controller
One 20' #10 Gauge Solar Cable (Red)
One 20' #10 Gauge Solar Cable (Black)
One 10' #10 Gauge Battery Cable (Red)
One 10' #10 Gauge Battery Cable (Black)
One Set of Mounting Z Brackets
One 10A In-line Fuse Holder with Fuse
Specs:
Maximum Power(Pmax): 100W
Maximum Power Voltage(Vmp): 18.6V
Maximum Power Current(Imp): 5.38A
Open Circuit Voltage(Voc): 22.8V
Short Circuit Current(Isc): 5.78A
Weight: 15 lbs
Dimensions: 45.5 x 20.5 x 1.4 in
Warranty: 25 years output warranty
